Explosion Proof Cameras

Designed for the Hazardous area rated environment (explosion proof), these tough cameras are built to withstand the abuse in such an industrial application. The certified enclosures house only state-of-the-art technology. High resolution image sensors integrated with precision optics give you a clean and clear view of your operation with the appropriate environmental protection. This technology allows for greater reliability with less maintenance.

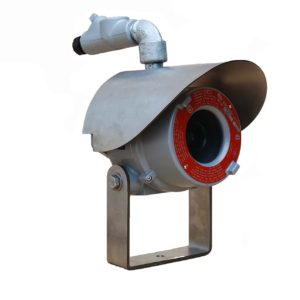

CCEX1 STATIONARY MOUNT

A stationary mounted version of our hazardous area camera. This camera can be used in a host of applications from loading racks to flare monitoring. With a variety of available lenses, we can accomplish the widest of views to the most long distance telephoto shot. Simple installation, reliability and low cost are this cameras strong points. Available in both traditional analog as well as megapixel IP versions. Class 1, Divisions 1 and 2, Groups B, C and D Class 2, Divisions 1 and 2, Groups E, F and G Zone 1, AEX d IIB Zone 1, EEX d IIB NEMA 4, IP66 Small, compact High resolution color or day/night imager Variety of available lenses including manually adjusted vari-focal type, mechanical DC and electronic auto iris 12 VDC *Analog or megapixel IP versions available

CCEX3 SERIES- REMOTE PTZ

This camera is a full featured remote controlled pan/tilt/zoom/focus unit for hazardous areas. The CCEX3 series camera has the ability to operate in very low light conditions with its integrated high resolution day/night image sensor. Coupled with the 27x optical, 10x digital zoom lens, makes it an excellent choice when you need to see it all. Available in both analog and IP versions.

Class 1, Divisions 1 and 2, Groups C and D Class 2, Divisions 1 and 2, Groups E, F and G NEMA 4X 360 degree rotation High resolution day/night imager 27x optical zoom (10x digital) 120 VAC / 240 VAC, 50/60 Hz Analog or IP versions available EX PTZ SS

EXS3036 SERIES- EXTREME ENVIRONMENT

316 SS REMOTE CONTROLLED PAN TILT ZOOM FOCUS CAMERA

Class 1, Divisions 1 and 2, Groups C and D Class 2, Divisions 1 and 2, Groups E, F and G NEMA 4X

  • Electro polished 316 Stainless steel construction
  • Compact integrated design
  • 30x optical zoom (10x digital)
  • 360 degree continuous rotation
  • High resolution day/night imager
  • 27x optical zoom (10x digital)
  • Includes 316 SS sun shroud
  • Includes built in heater
  • 120 VAC / 240 VAC, 50/60 Hz
  • Analog or IP versions available Options
  • UTP transmitter
  • Fiber optic interface

CALL 615-591-3379 to Inquire or Order!
